The material
itself glows.

The material
itself glows.

Not a light box behind flat glass. Translucent Corian transmits warm light through the carved surface — the glow IS the material.

Not a light box behind flat glass. Translucent Corian transmits warm light through the carved surface — the glow IS the material.

40%

OF M|R Walls projects are backlit

RGB

Programmable · Scenes · Animation

1

Vendor. We provide everything.

HOW IT WORKS

Glacier White Corian transmits light. Nothing else does this.

Glacier White Corian transmits light. Nothing else does this.

"It's not a backlit panel. It's not a light box. The material glows from within — the carved surface and the light are one thing."

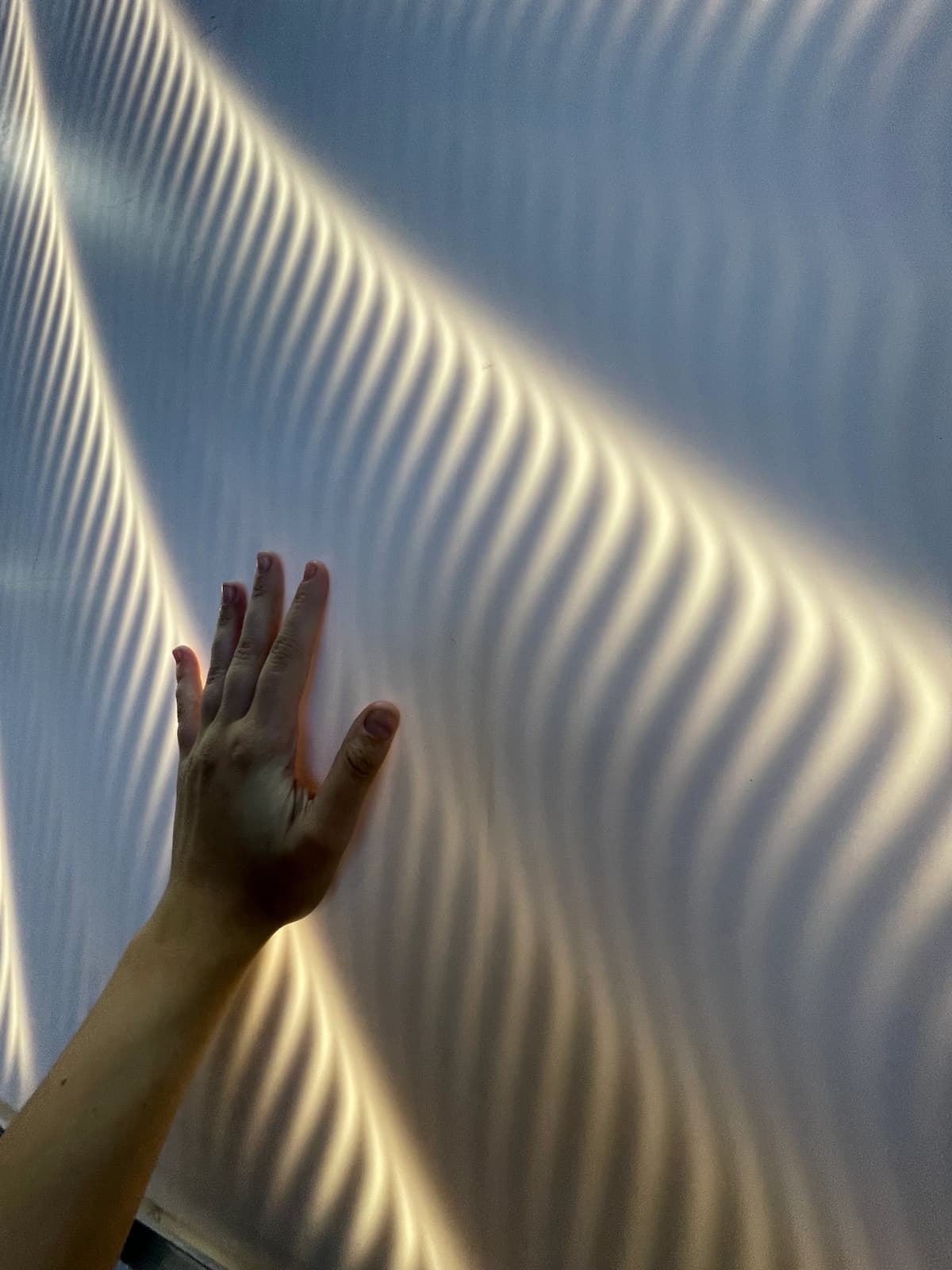

At the right thickness, Glacier White Corian is translucent. LED light passes through the material itself — not around it, not behind glass. The result is a warm, diffused glow that's impossible to replicate with metal, resin, or any other surface material.

This is why the carved texture still reads. The light reveals every groove. In a dark room, a Backlit M|R Walls surface is alive.

At the right thickness, Glacier White Corian is translucent. LED light passes through the material itself — not around it, not behind glass. The result is a warm, diffused glow that's impossible to replicate with metal, resin, or any other surface material.

This is why the carved texture still reads. The light reveals every groove. In a dark room, a Backlit M|R Walls surface is alive.

STANDARD

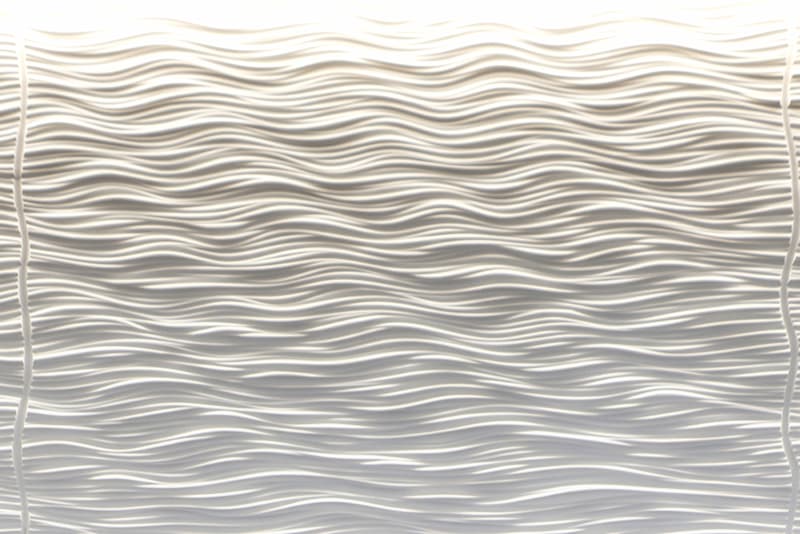

Same pattern. Same Corian. Carved surface in ambient light sculptural, precise, architectural.

BACKLIGHT

LED array behind. The material glows from within. Warm, alive. Same Corian completely different experience.

Same pattern — Lake design in Glacier White · Standard vs Backlit

The Reverse Smooth Technique

Carved side faces the light. Smooth side faces the room.

Carved side faces the light. Smooth side faces the room.

Most architects don't know this. When we install Backlit panels, we flip them — the carved texture faces the LED array, and the smooth flat side faces the room. This does three things: maximizes glow uniformity, makes the surface easier to clean, and creates a soft diffused effect that you can't achieve any other way.

Most architects don't know this. When we install Backlit panels, we flip them — the carved texture faces the LED array, and the smooth flat side faces the room. This does three things: maximizes glow uniformity, makes the surface easier to clean, and creates a soft diffused effect that you can't achieve any other way.

Backlight Assembly Cross-Section — Wall to Surface

Backlight Assembly Cross-Section

— Wall to Surface

Wall structure

EXISTING WALL / FRAMING

EXISTING WALL / FRAMING

LED array

✦ LED STRIP · 5" O.C. · LOW VOLTAGE · IP65

✦ LED STRIP · 5" O.C. · LOW VOLTAGE · IP65

Air gap

AIR GAP · ~1.5" · HEAT DISSIPATION

AIR GAP · ~1.5" · HEAT DISSIPATION

Carved surface

CORIAN · CARVED SIDE FACING LED

CORIAN · CARVED SIDE FACING LED

Room face

SMOOTH FACE · EASY CLEAN · FACES ROOM

SMOOTH FACE · EASY CLEAN · FACES ROOM

Same pattern — Lake design in Glacier White · Standard vs Backlit

Uniform glow

Carved side diffuses the light evenly before it reaches the smooth face. No hot spots, no LED shadows visible.

Easiest to clean

Smooth flat face facing the room. Wipe down in seconds. Critical for healthcare applications.

Pattern still reads

Carved side diffuses the light evenly before it reaches the smooth face. No hot spots, no LED shadows visible.

WHERE BACKLIGHT WORKS

Every application. Some more than others.

Every application. Some more than others.

Glacier White Corian at the right thickness transmits warm light through the material itself — not around it. The surface glows from within.

Glacier White Corian at the right thickness transmits warm light through the material itself — not around it. The surface glows from within.

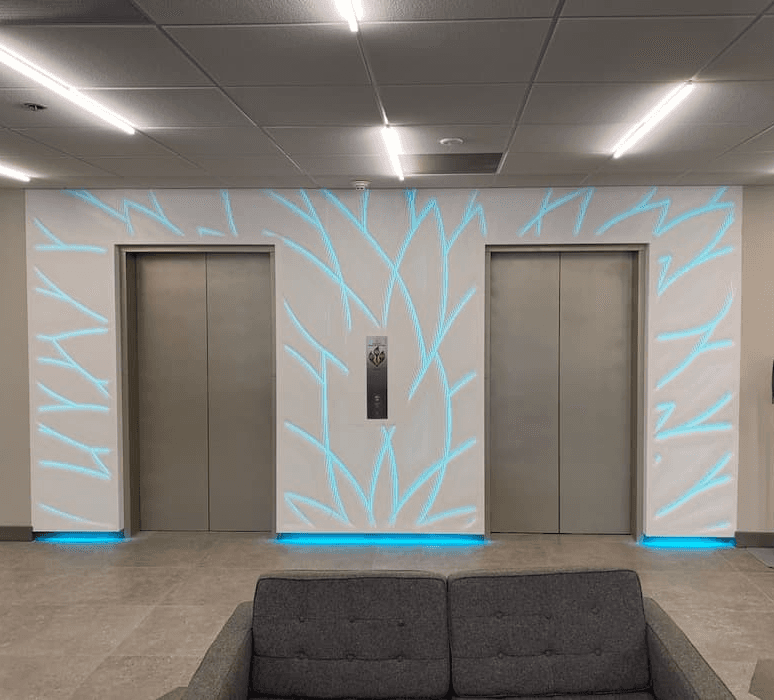

elevator lobby

The arrival moment. Backlit panels transform the wait into an experience.

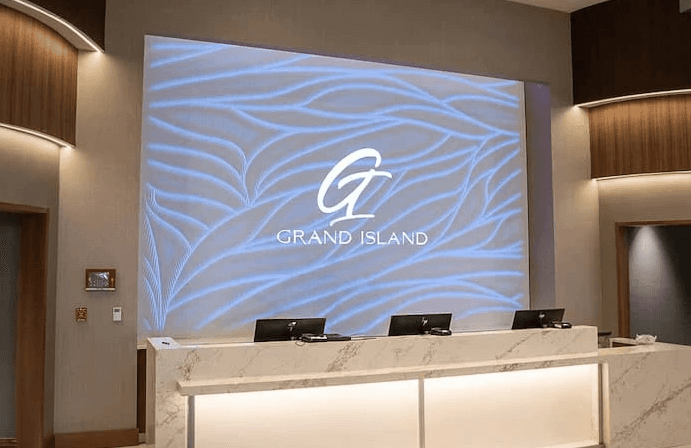

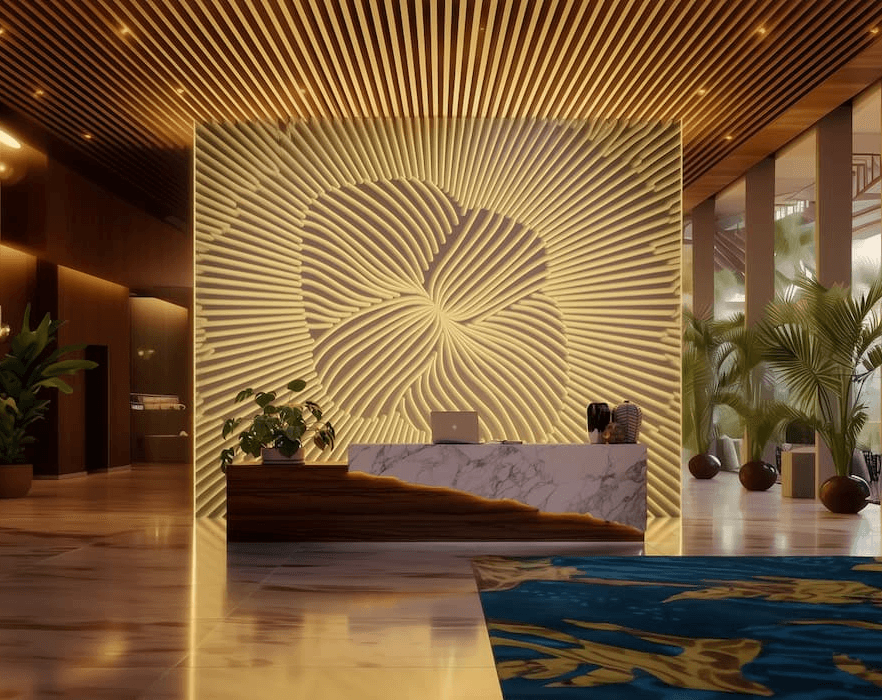

reception

Brand presence at first contact. Warm glow builds trust before anyone speaks.

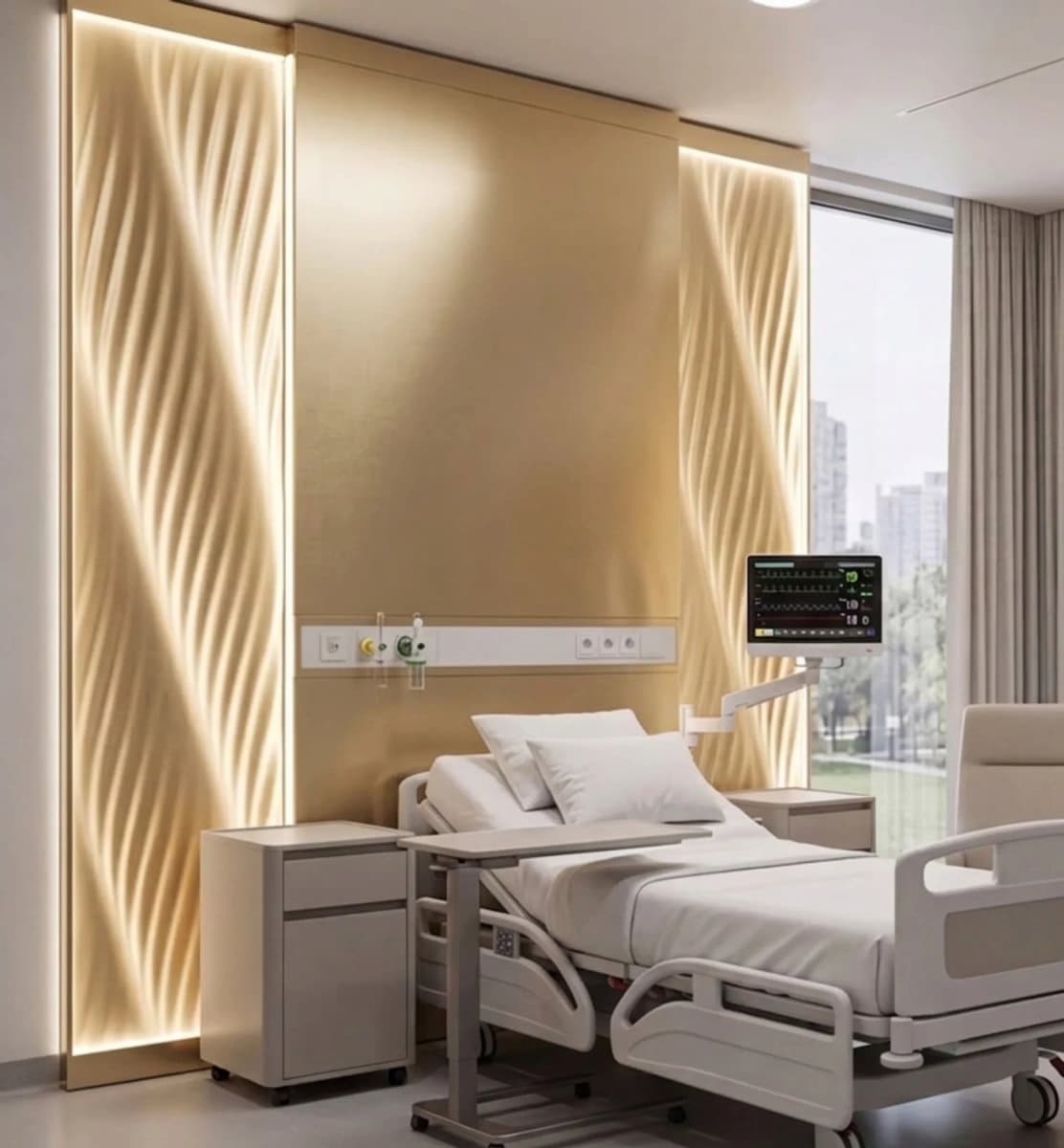

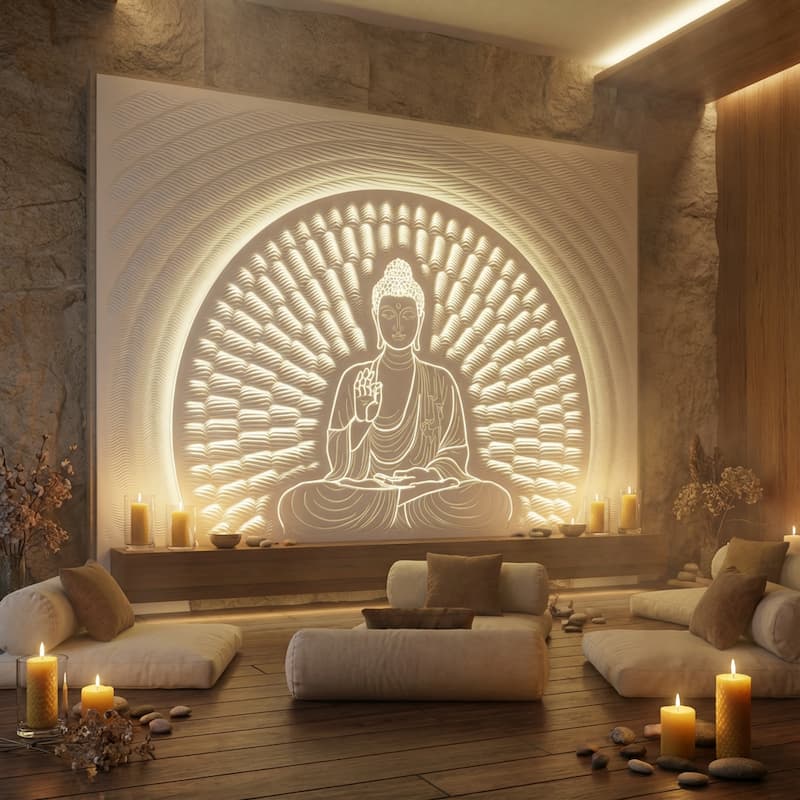

meditation rooms

Clinical studies: warm ambient light reduces patient anxiety. GREENGUARD certified.

spiritual & calm rooms

Serenity through light. Healthcare's most requested backlit application.

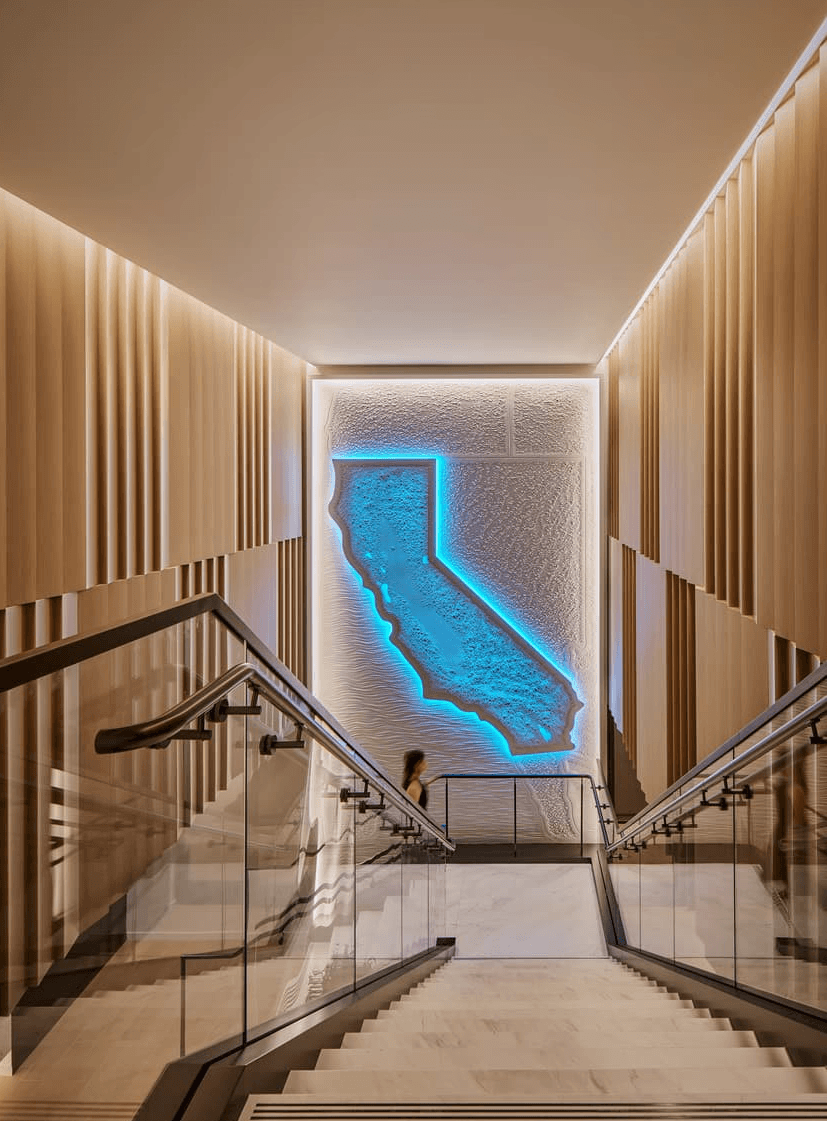

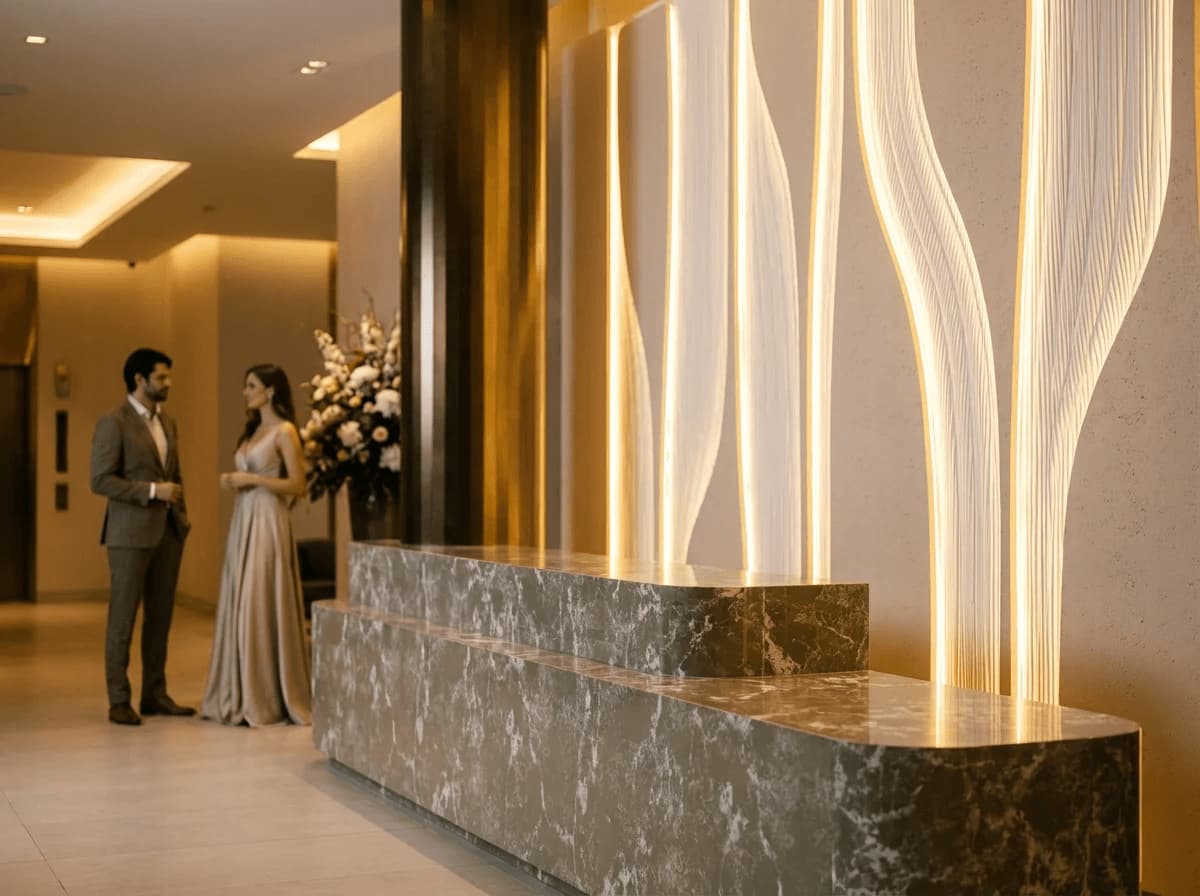

grand entry

The first impression at architectural scale. Backlit features stop people in their tracks.

ceiling

Overhead backlit canopies. Dramatic overhead glow.

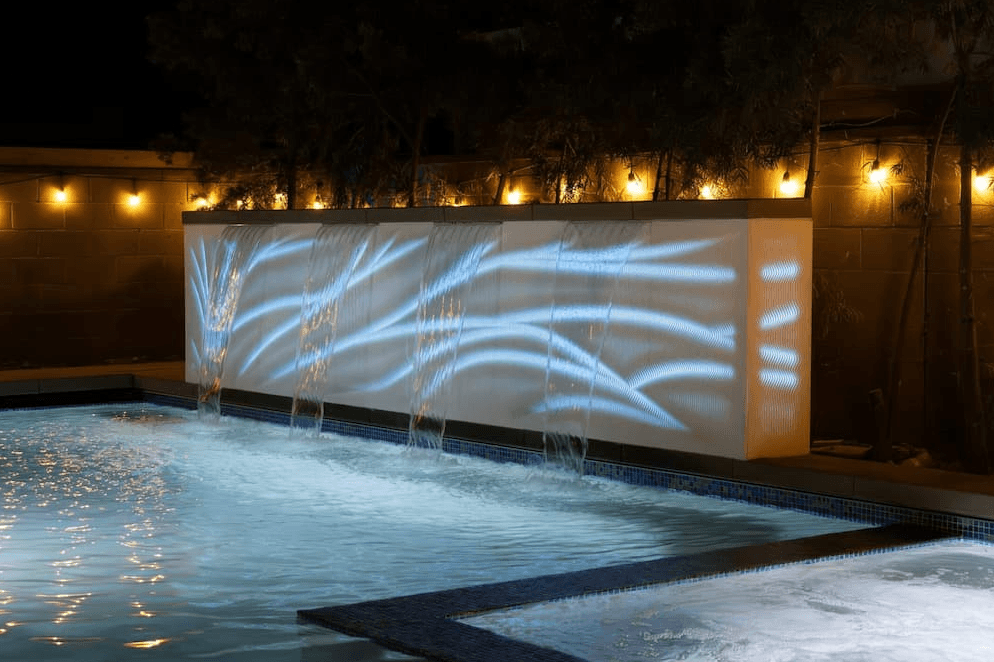

water features

Waterproof IP65 rating. Backlit panels behind water flow — used in hospitality and residential.

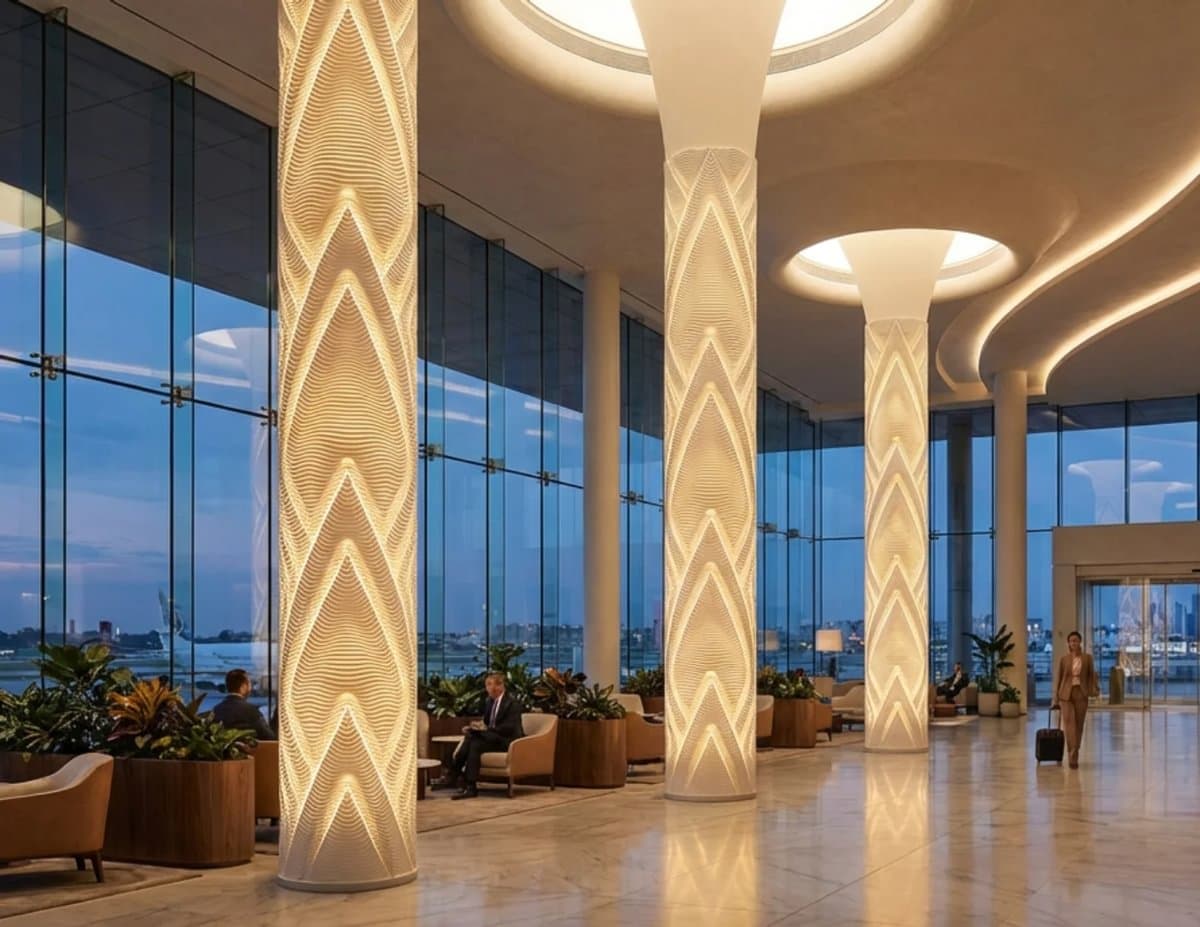

column wraps

Columns that glow. Curved Corian wrapped around structural columns — backlit for drama.

branding walls

Logos carved into Corian and backlit. The brand glows.

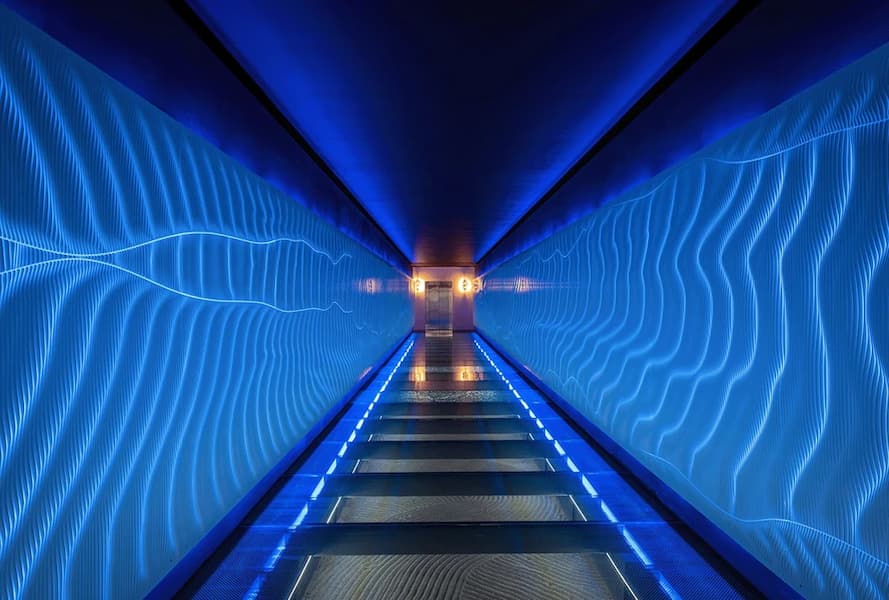

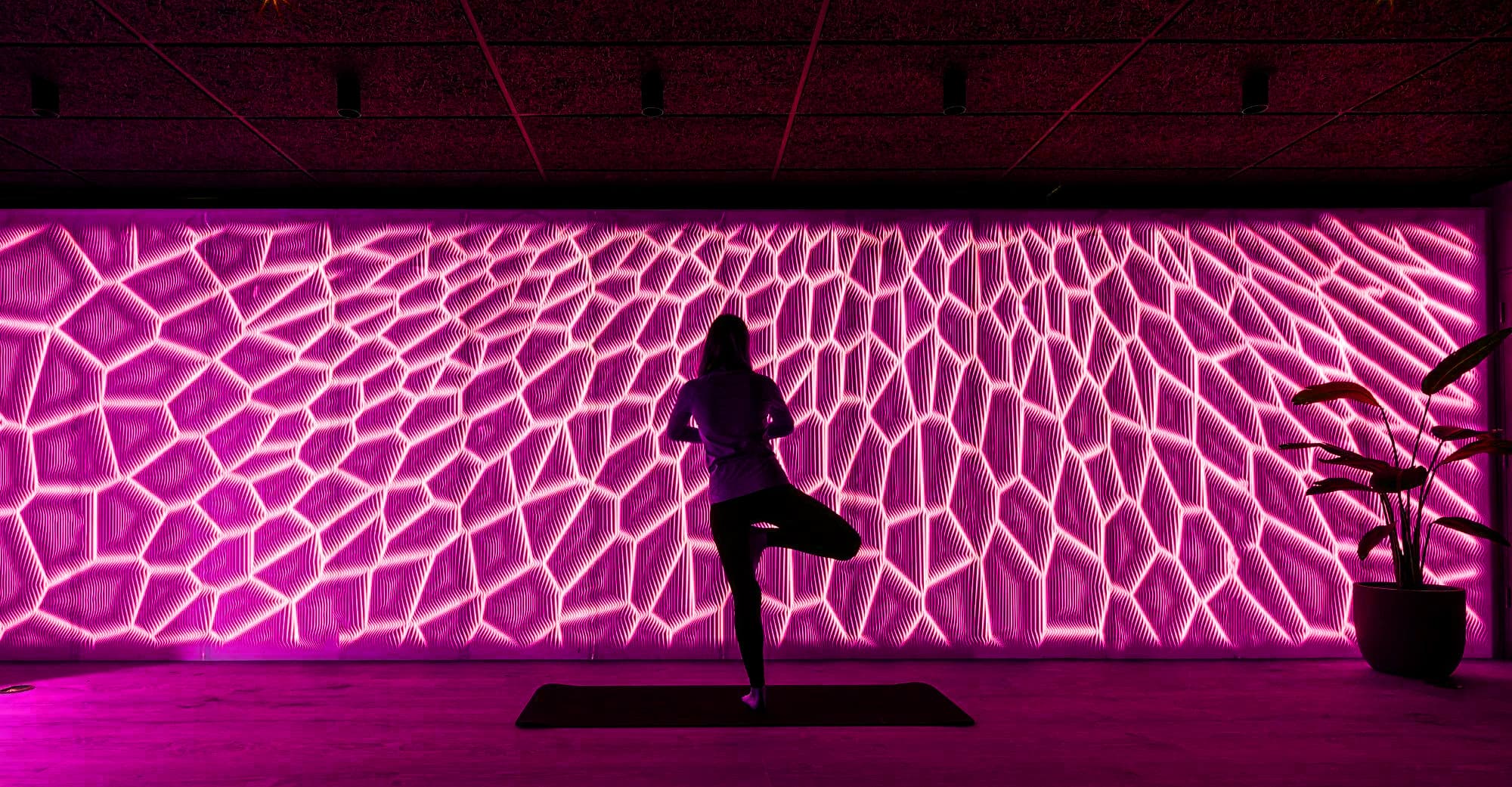

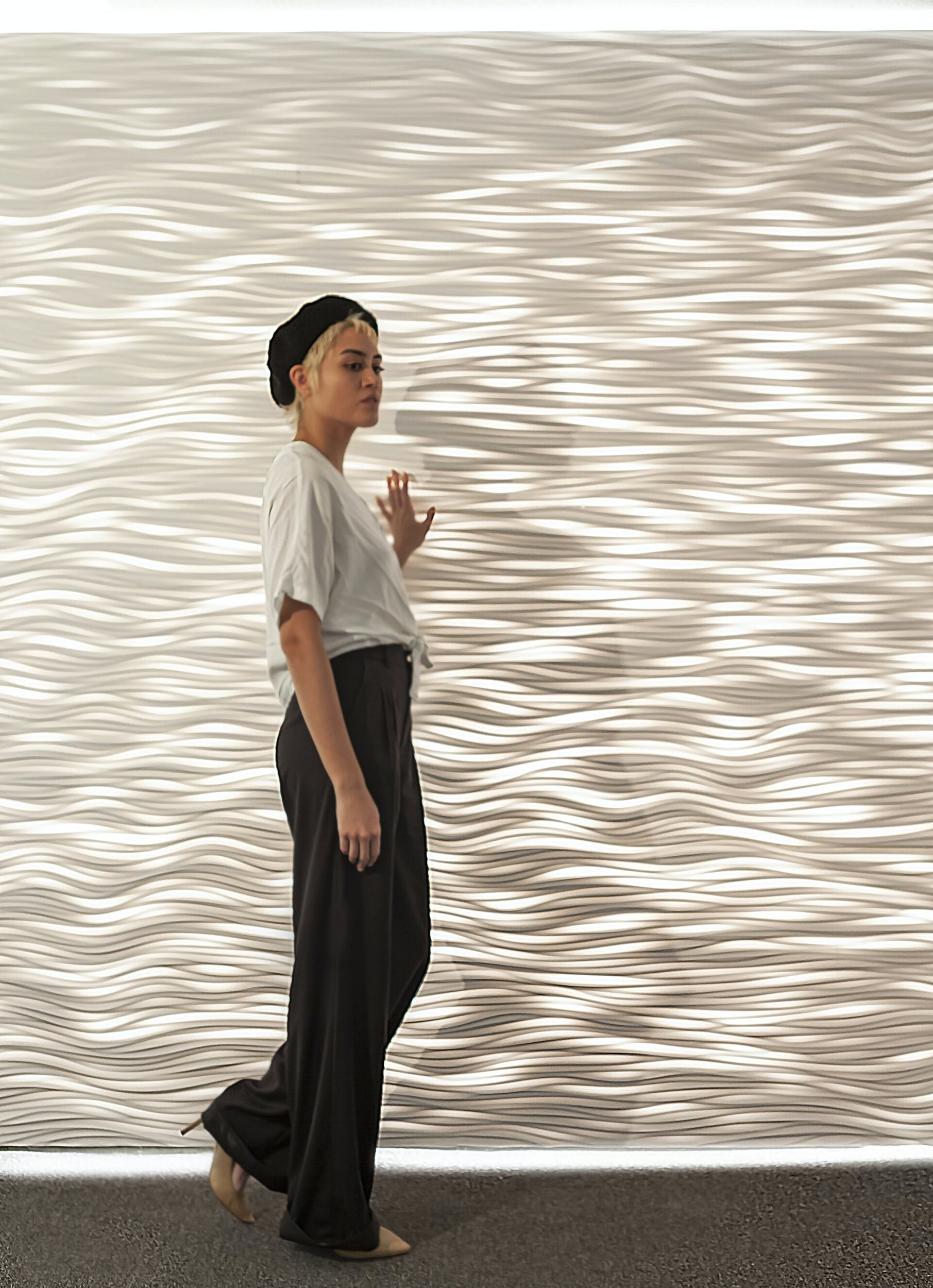

feature walls

Any design, any scale. Backlit statement walls in corporate, hospitality, and healthcare.

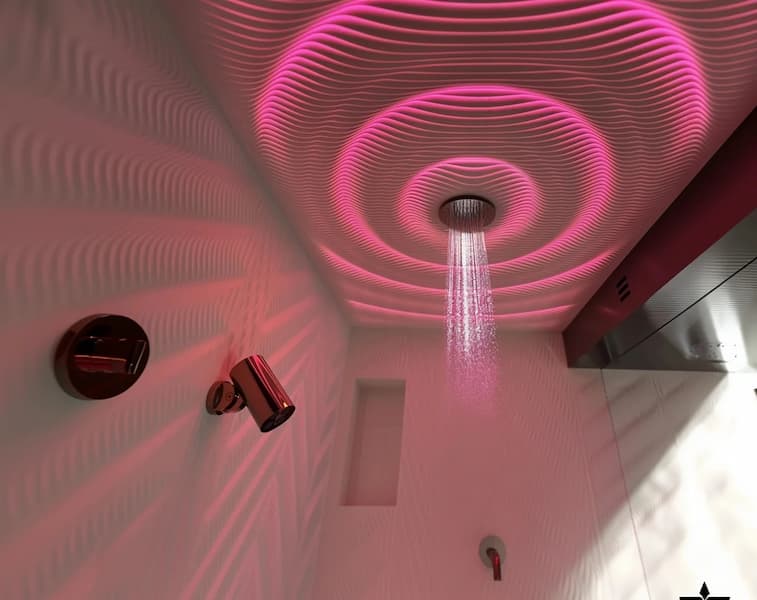

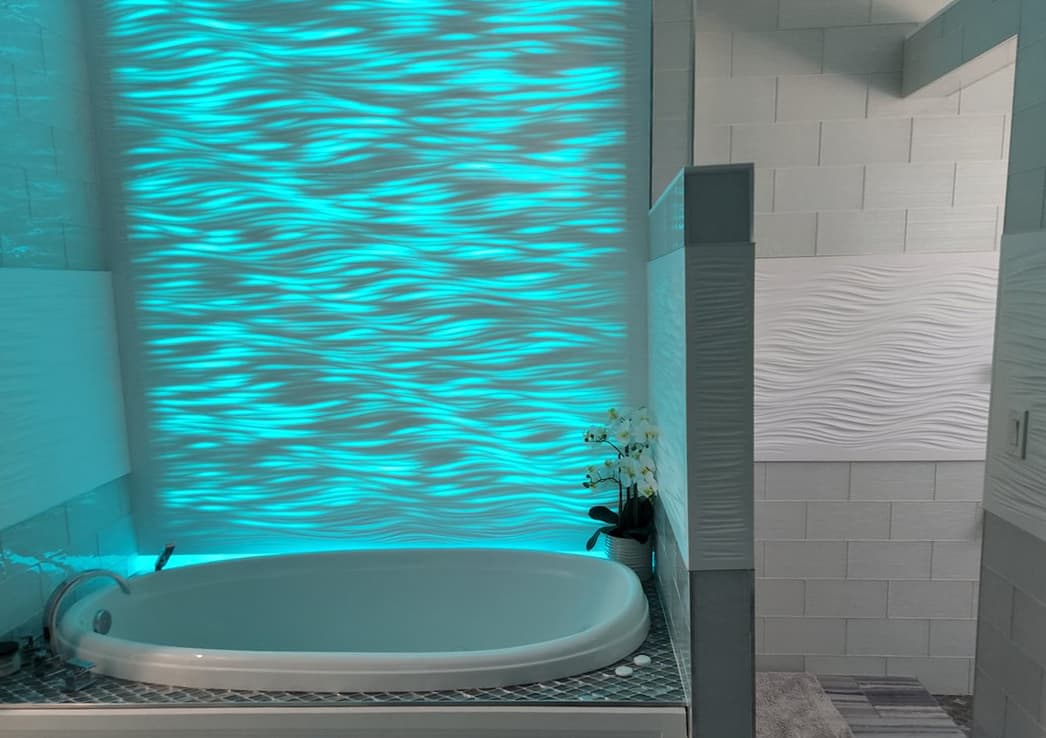

shower & wet areas

IP65 waterproof LED system. Non-porous Corian. Backlit shower walls — premium residential.

exterior facade

Exterior-certified Corian with weatherproof LED. Building facades that glow at night.

PROJECT INSTALLATIONS

Where we've installed Backlight.

Where we've installed Backlight.

Backlight works anywhere Glacier White Corian is specified. These applications see the highest adoption.

Backlight works anywhere Glacier White Corian is specified. These applications see the highest adoption.

Morongo Casino · Ceiling

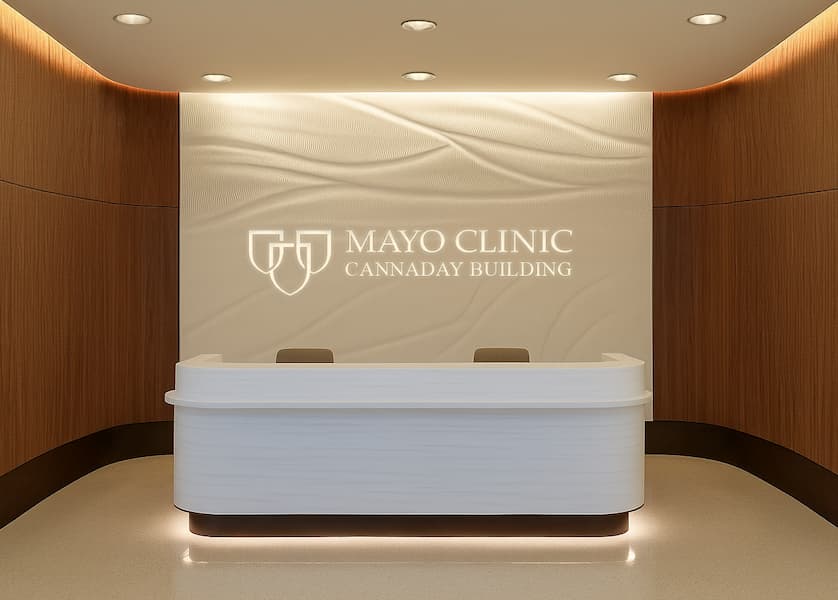

Mayo Clinic · Branding

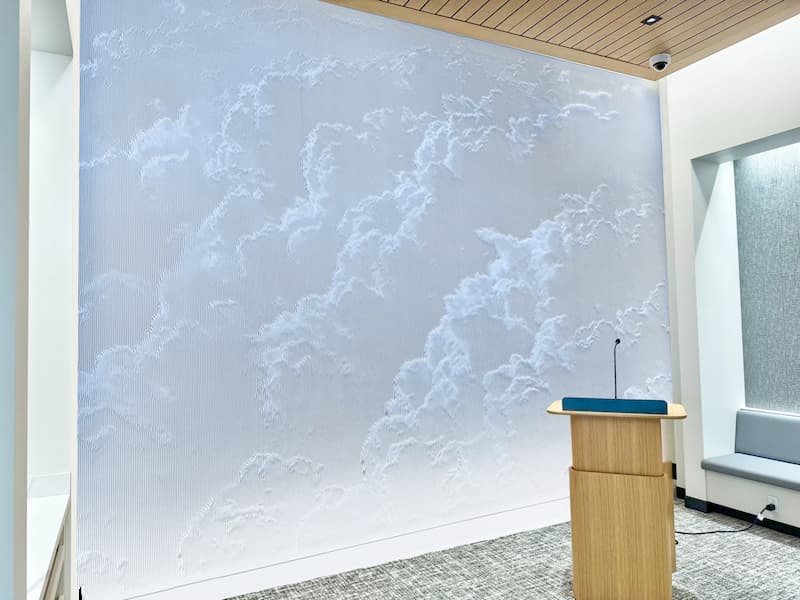

Rutgers Cancer Center · Prayer Room

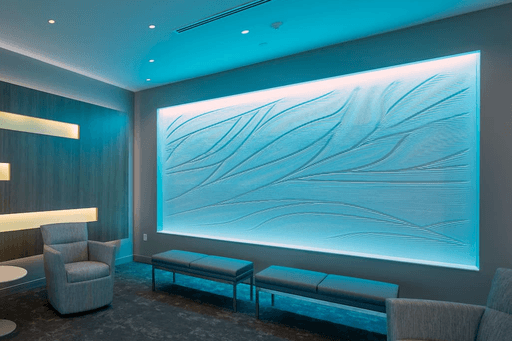

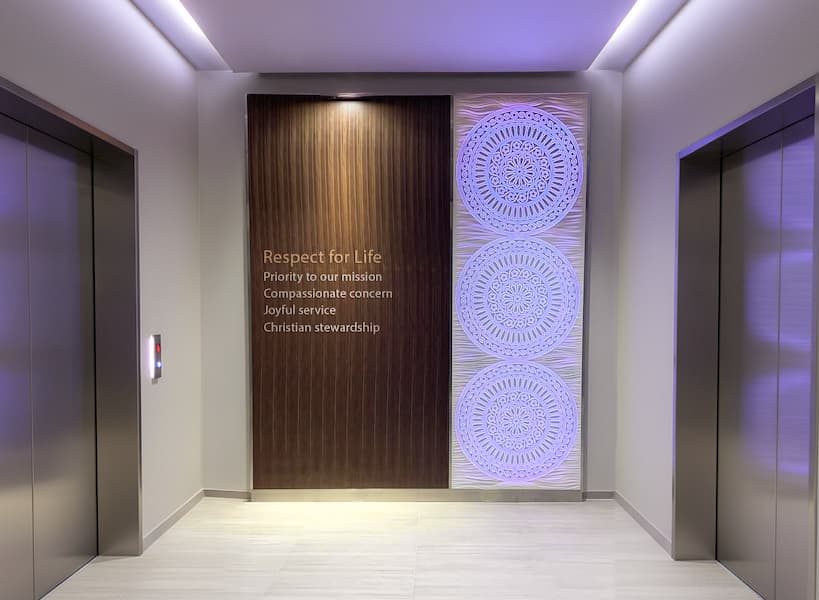

Franciscan Health · Elevator Lobby

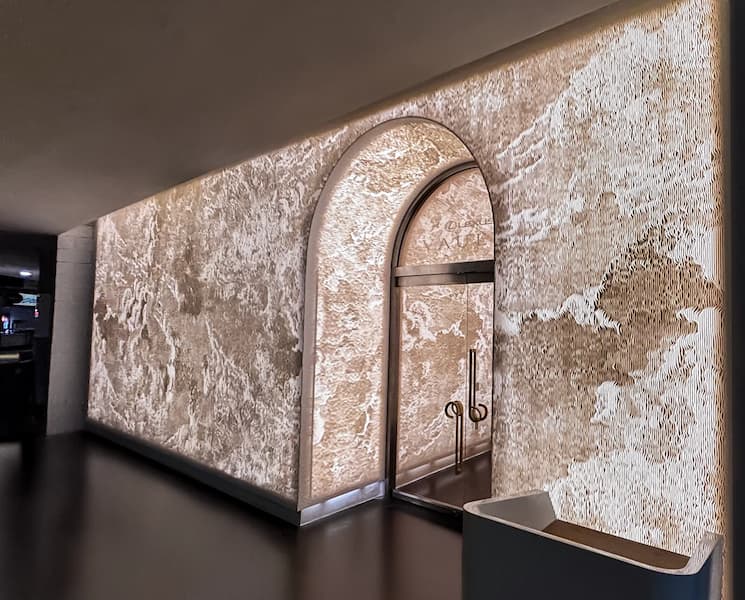

Vegas Dave · Hallway

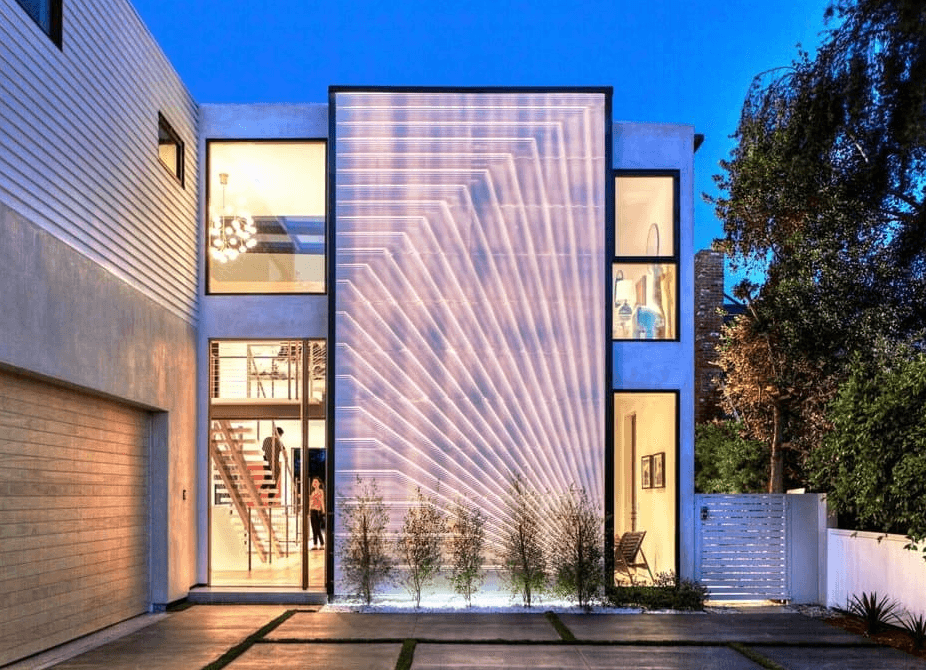

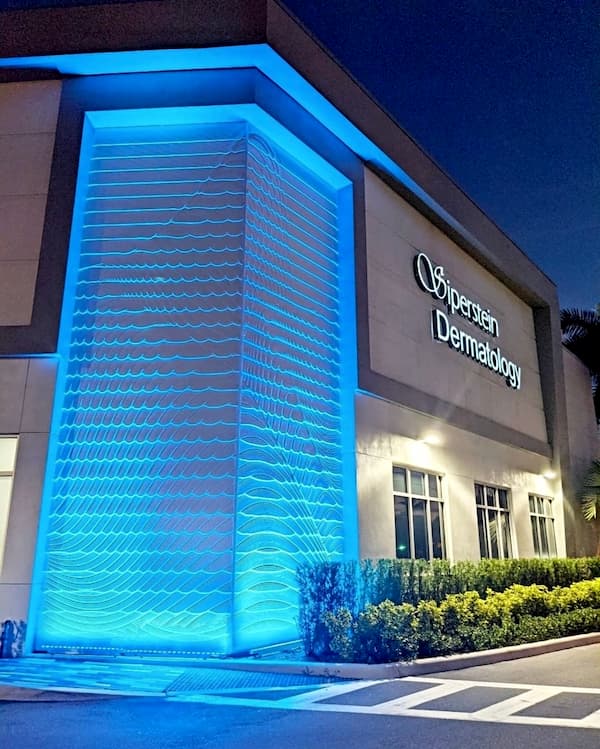

Siperstein Dermatology · Facade

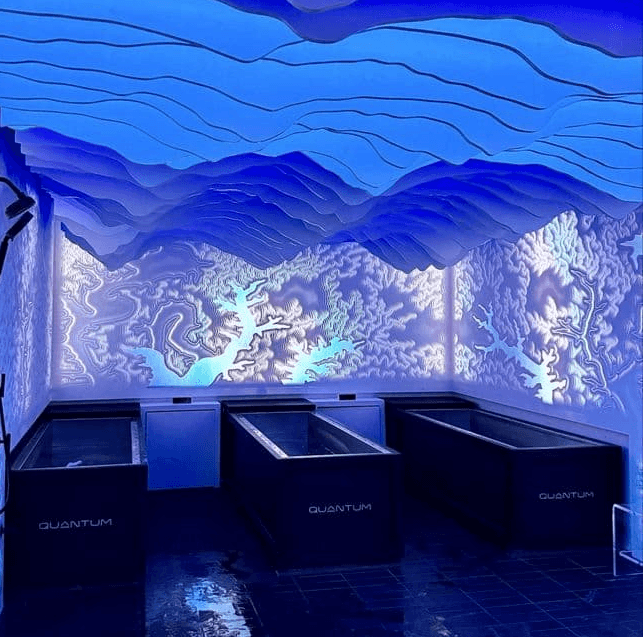

Quantum Spa · Feature Walls

Capital One Vault Suites · Feature Wall

technical specifications

The spec that architects always ask for.

The spec that architects always ask for.

We're showing you the essentials. The complete Backlight System Package — including assembly drawings, electrical requirements, LED spec sheets, and CSI spec language — is available to registered specifiers.

We're showing you the essentials. The complete Backlight System Package — including assembly drawings, electrical requirements, LED spec sheets, and CSI spec language — is available to registered specifiers.

SPECIFICATION

VALUE

Corian Color

Glacier White — the only color that fully backlights. Other colors available for partial glow effect.

LED System

M|R Walls provides the complete system. Panels + LEDs + drivers + mounting hardware. One vendor.

LED Type

High-CRI LED strip, 5" on center

Voltage

Low voltage LED system. 120V circuit by contractor — we specify, contractor provides.

Color Options

RGB Standard (fixed warm white, cool white, or color) · RGB Programmable (scenes, animation, color cycling, DMX control)

Waterproof Rating

IP65 — suitable for wet areas including patient showers, water features, exterior

Wall Depth Required

3" minimum from wall structure to panel face

Get the Complete Backlight System Package

Get the Complete Backlight System Package

Assembly drawings, CSI spec language, electrical requirements, LED data sheets — everything your engineer and contractor need to specify and install.

Request the Full Technical Package

You'll receive: Assembly drawing · CSI spec section · LED spec sheet · Electrical requirements · Installation guide
