INTRODUCTION

Have you ever imagined water flowing over a sculpted 3D surface, mimicking the mesmerizing movements found in nature? At MR Walls, this idea sparked our creative journey, and today, we’re excited to share our groundbreaking discoveries with you.


This idea sparked our creative journey starting a few years ago, what if water could flow over a sculpted 3D surface just like it does in nature.

TEMP_water-features-over-3d-surfaces_01

Captivating Effects

Captivating Effects

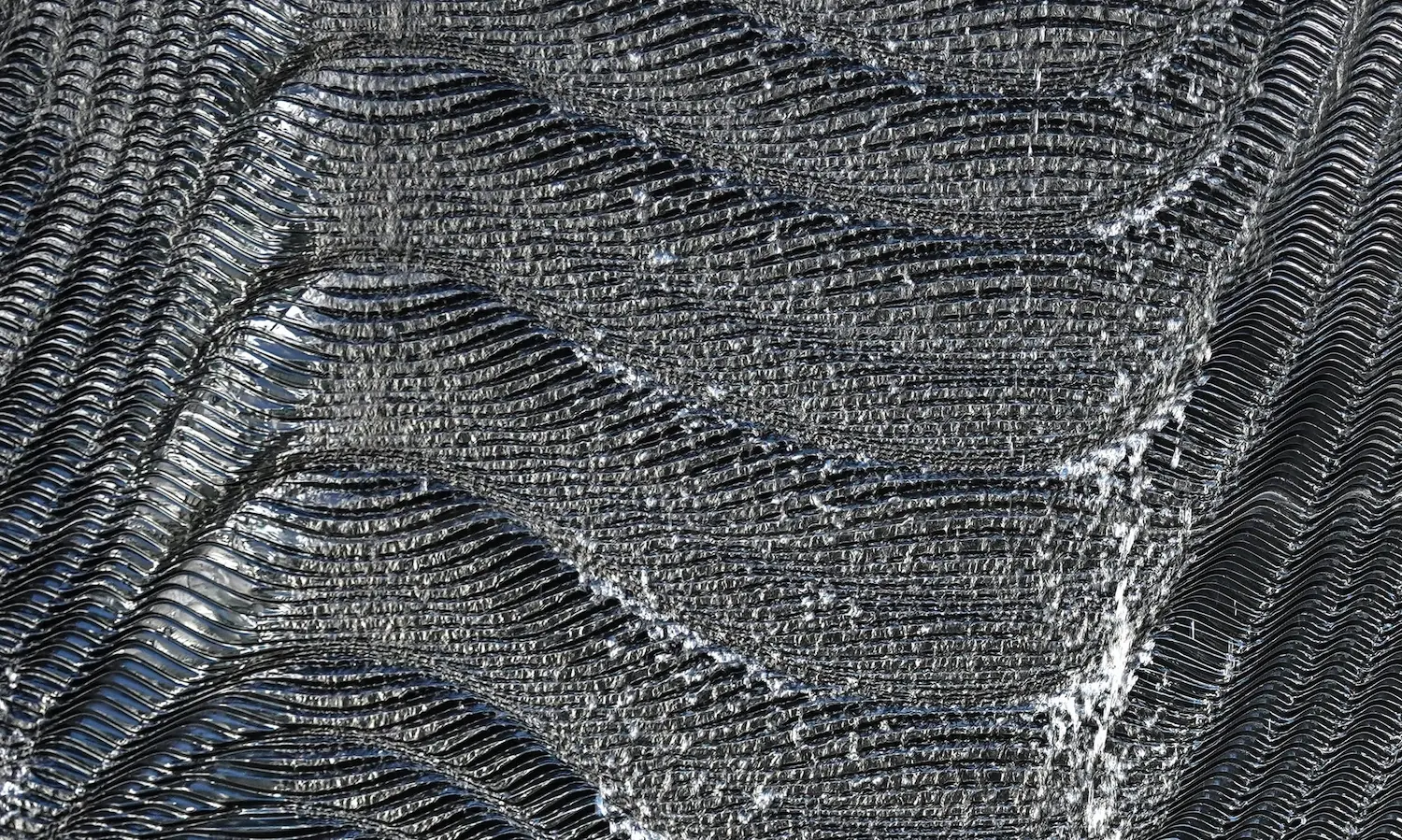

Water, with its uninterrupted flow, serves as the ultimate truth-teller, effortlessly navigating surfaces to reveal their inherent qualities.

TEMP_water-features-over-3d-surfaces_02
TEMP_water-features-over-3d-surfaces_03

Medium of Expression

Medium of Expression

The natural intelligence of water can be a medium of expression. This is what we created. Whether it's the speed and direction of flow or the creation of dynamic water effects, our designs invite a symbiotic dance with nature's most elemental force.

The natural intelligence of water can be a medium of expression. This is what we created. Whether it's the speed and direction of flow or the creation of dynamic water effects, our designs invite a symbiotic dance with nature's most elemental force.

How does this impact design?

How does this impact design?

TEMP_water-features-over-3d-surfaces_04

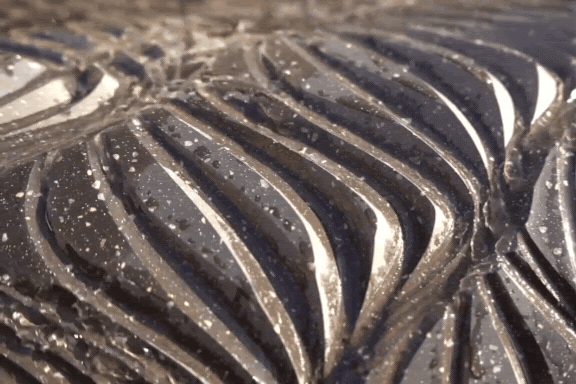

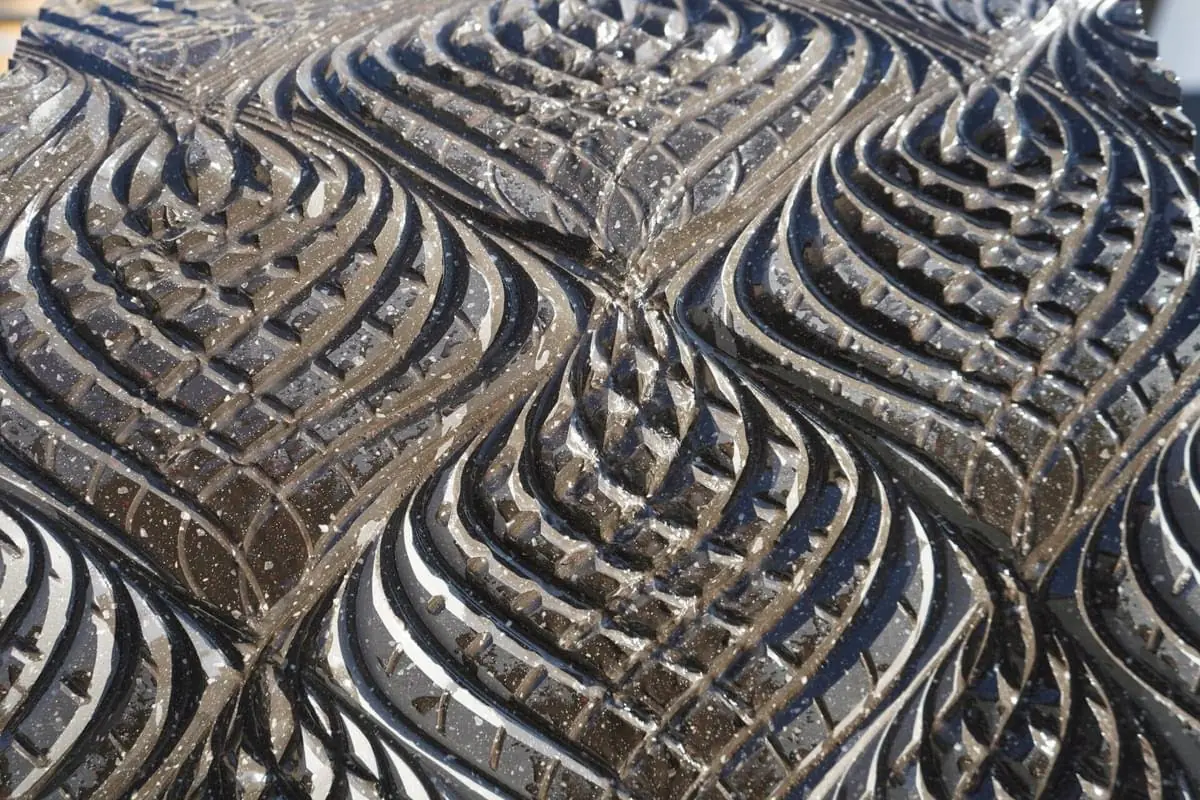

By sculpting our surfaces and setting for the finish facade of a water feature we discovered how responsive water is to even the most minute texture.

TEMP_water-features-over-3d-surfaces_05

Vertical Bliss

Vertical Bliss

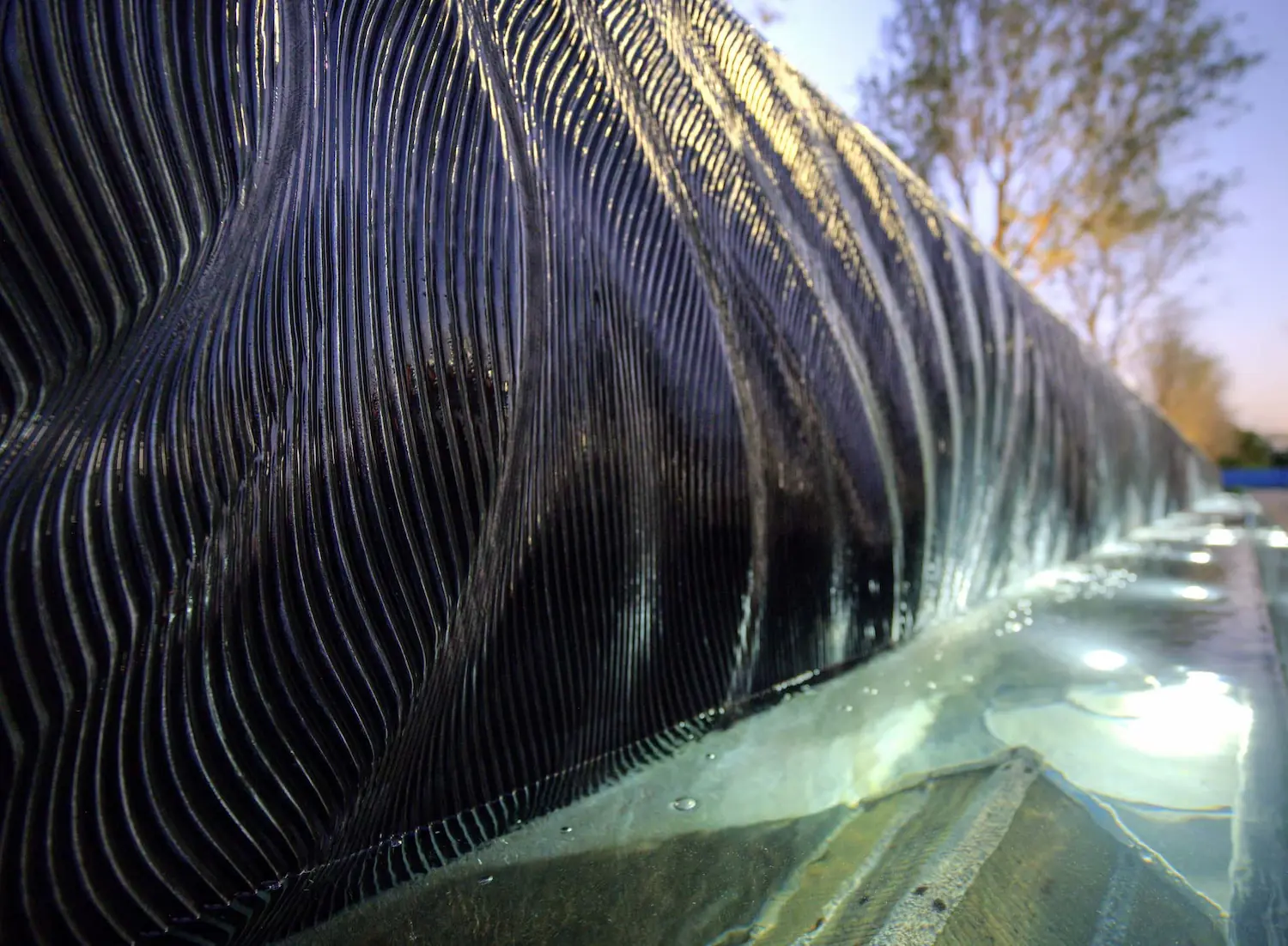

We learned that running our carved surface vertically, the water runs fast, pulling more flow and could even leave parts of the surface dry, despite that water starts evenly at the top of the surface.

We learned that running our carved surface vertically, the water runs fast, pulling more flow and could even leave parts of the surface dry, despite that water starts evenly at the top of the surface.

Horizontal Heaven

Horizontal Heaven

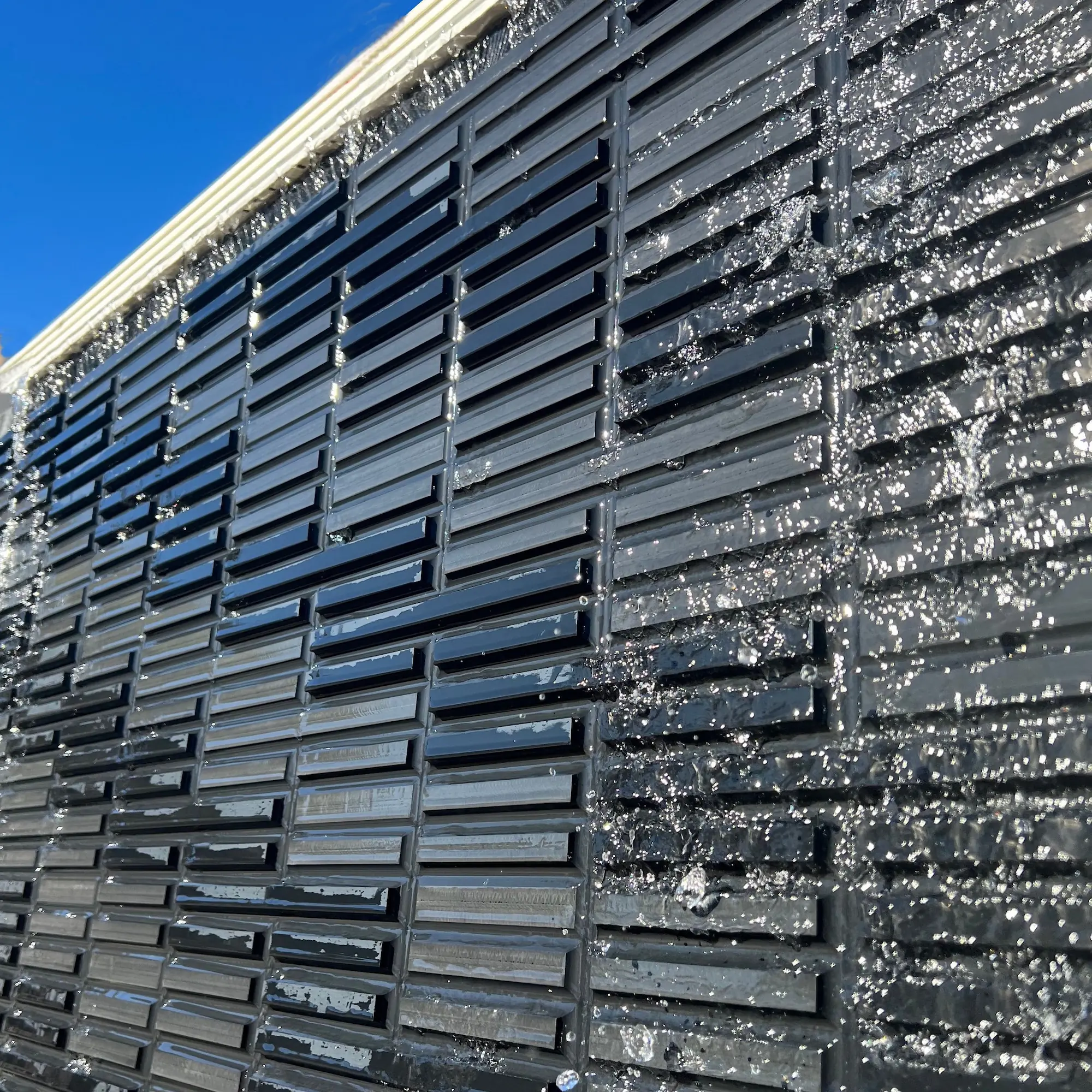

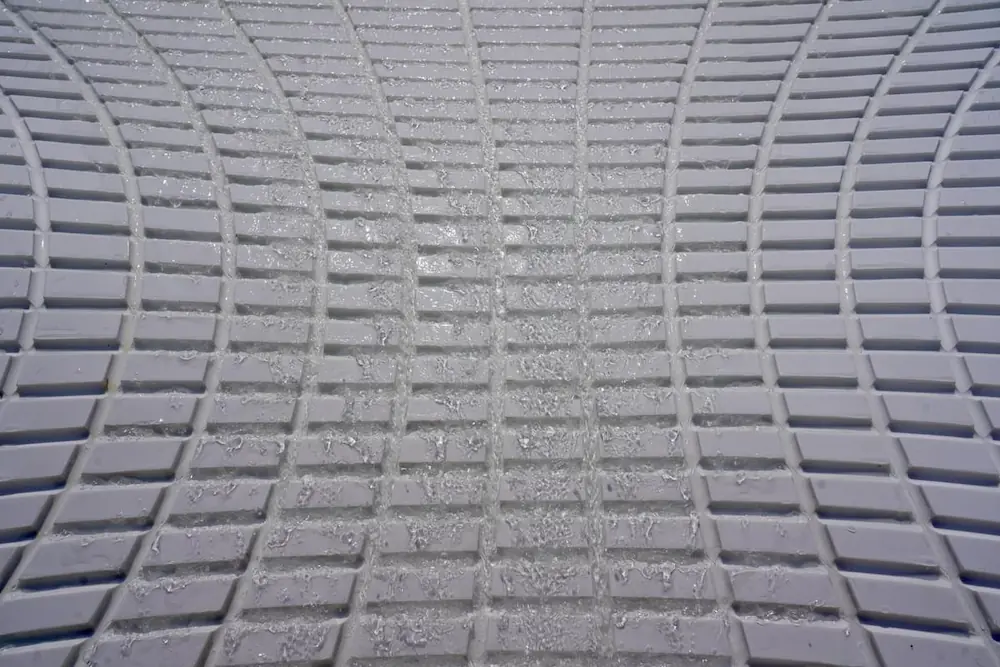

Run the texture horizontally, and the water can pull the one side, or pull away from each other, creating different water effects.

Run the texture horizontally, and the water can pull the one side, or pull away from each other, creating different water effects.

TEMP_water-features-over-3d-surfaces_06

Perfect Pitch

Perfect Pitch

TEMP_water-features-over-3d-surfaces_07

Pun intended!

Sometimes we recommend pitching the surface just a tad, instead of 90 degrees to 85 degrees. The slows the water down, just enough to so that we can enjoy it’s natural flow by grabbing the surface and not bouncing off of it. It’s completely optional, as 90 degree is very standard.

Depth!

Depth!

TEMP_water-features-over-3d-surfaces_08
TEMP_water-features-over-3d-surfaces_09

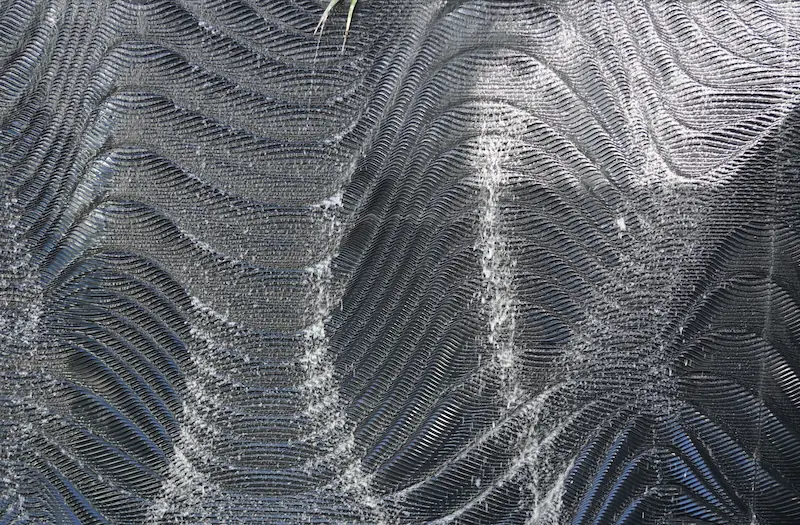

The water is so responsive to depth, that 1/16 of a inch can entirely change the direction of the water flow, enabling it to skip, creating white splashes or energy rushes, as the texture becomes more shallow, the water slows down, building up, and if desired, we can accelerate the flow with an attack of depth into the surface.

The water is so responsive to depth, that 1/16 of a inch can entirely change the direction of the water flow, enabling it to skip, creating white splashes or energy rushes, as the texture becomes more shallow, the water slows down, building up, and if desired, we can accelerate the flow with an attack of depth into the surface.

But we don’t stop there.

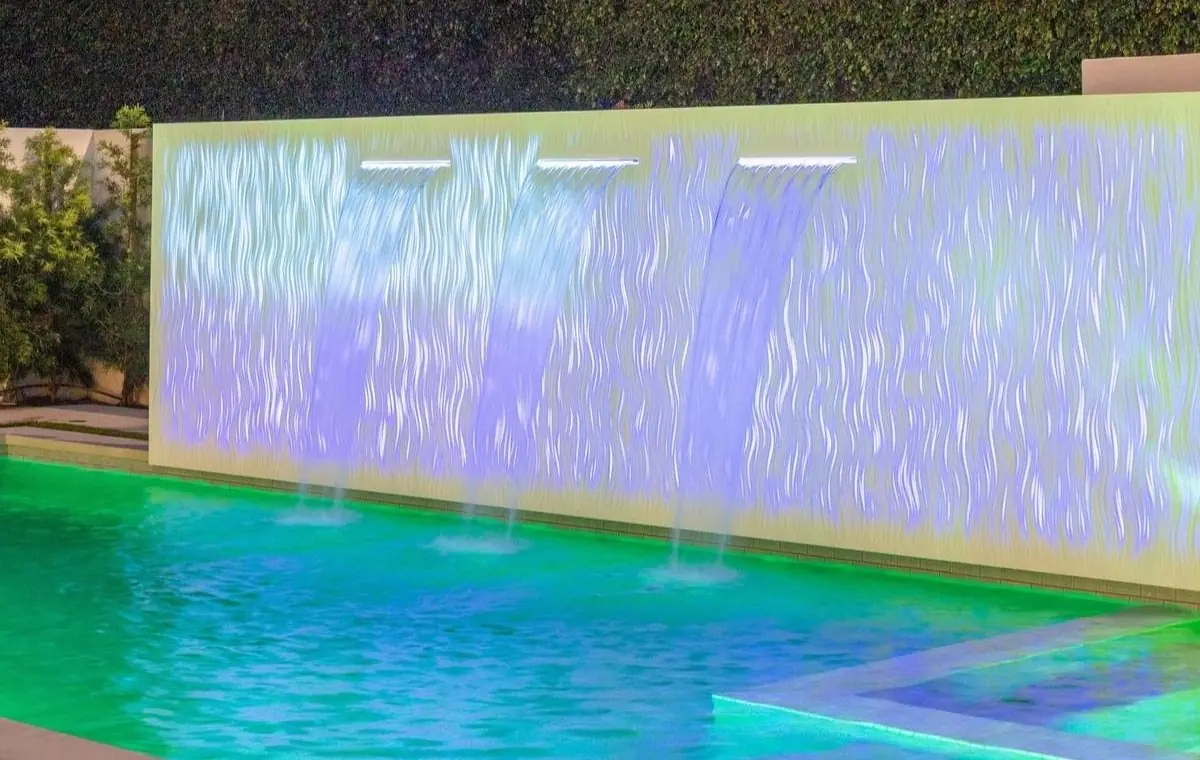

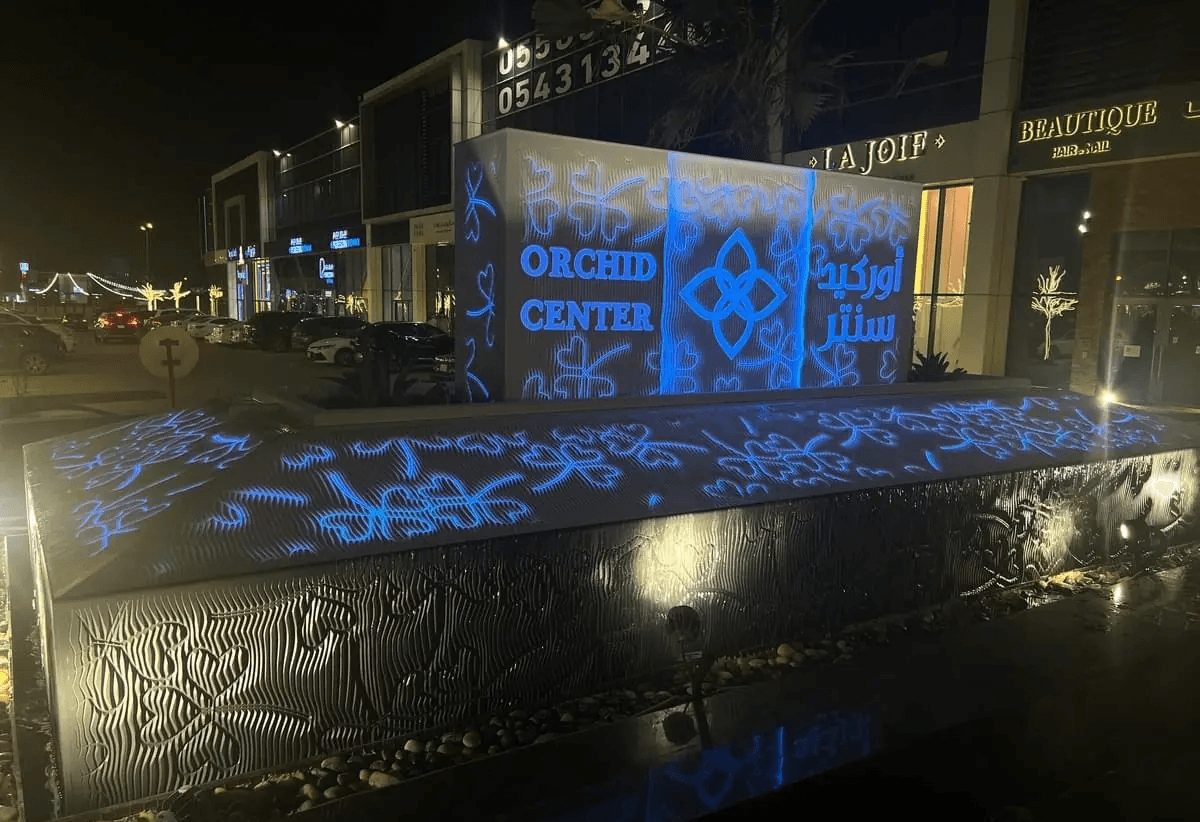

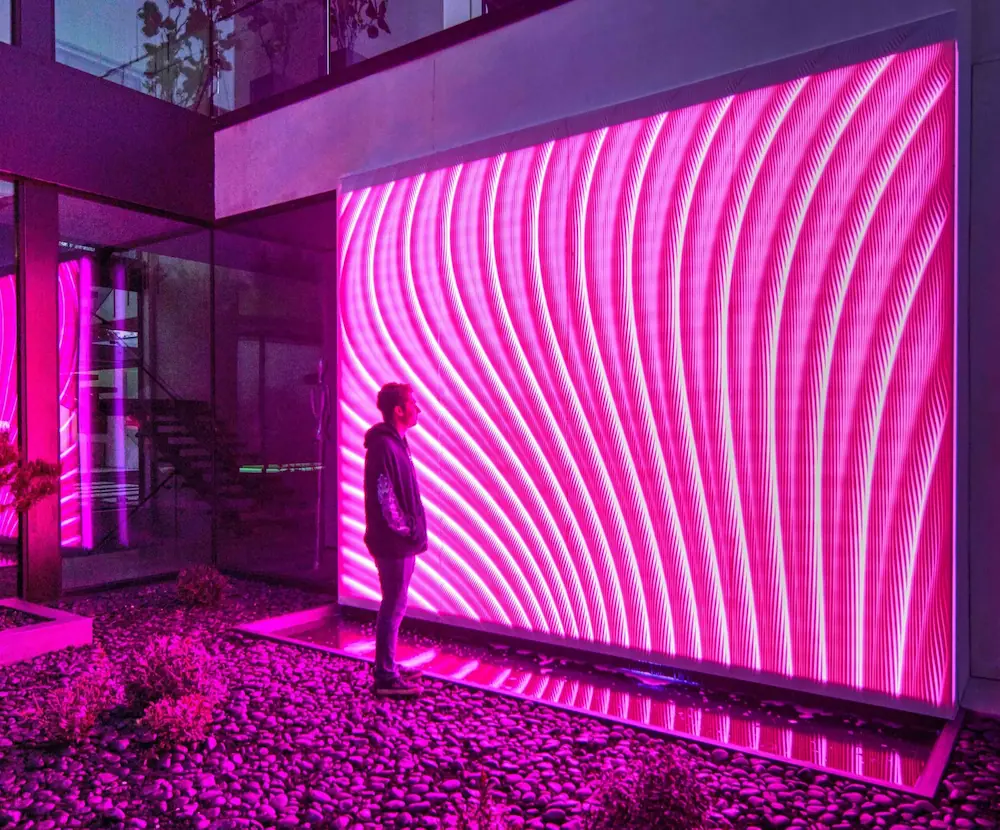

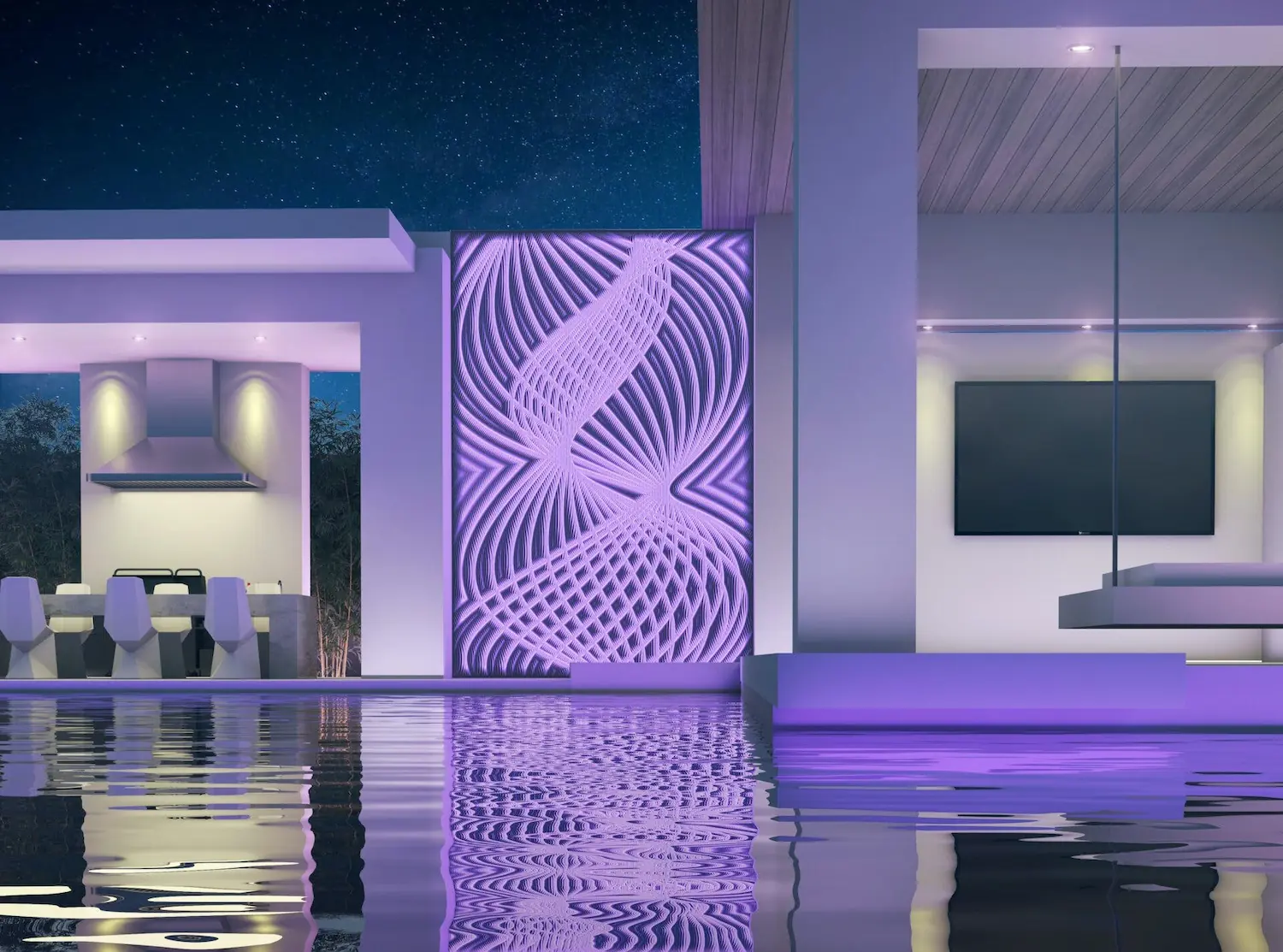

We also challenged ourselves by adding illumination. Taking advantage of water’s translucency, we also cast light through our surface and through the water designing an an designed environment that delights the senses.

TEMP_water-features-over-3d-surfaces_10

Nature-Inspired Patterns


Immerse yourself in nature-inspired patterns that capture the beauty of the outdoors. From flowing river motifs to intricate leaf designs, our water features evoke the tranquility and serenity of the natural world.

TEMP_water-features-over-3d-surfaces_11

Functional Beauty

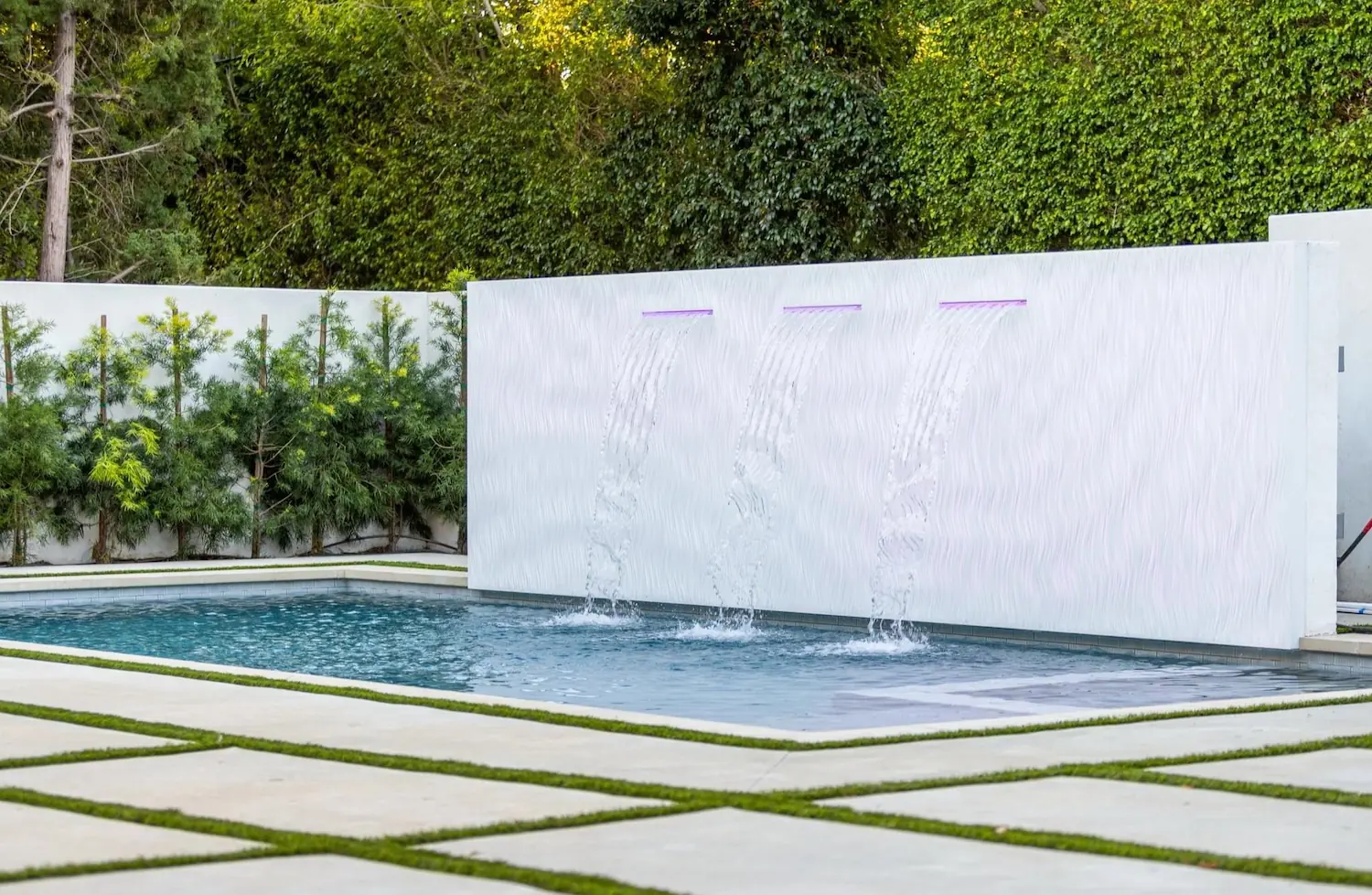

Discover how form meets function in our water feature designs. From public spaces to private residences, our water features not only enhance the aesthetic appeal but also provide practical benefits such as cooling and relaxation.

TEMP_water-features-over-3d-surfaces_12

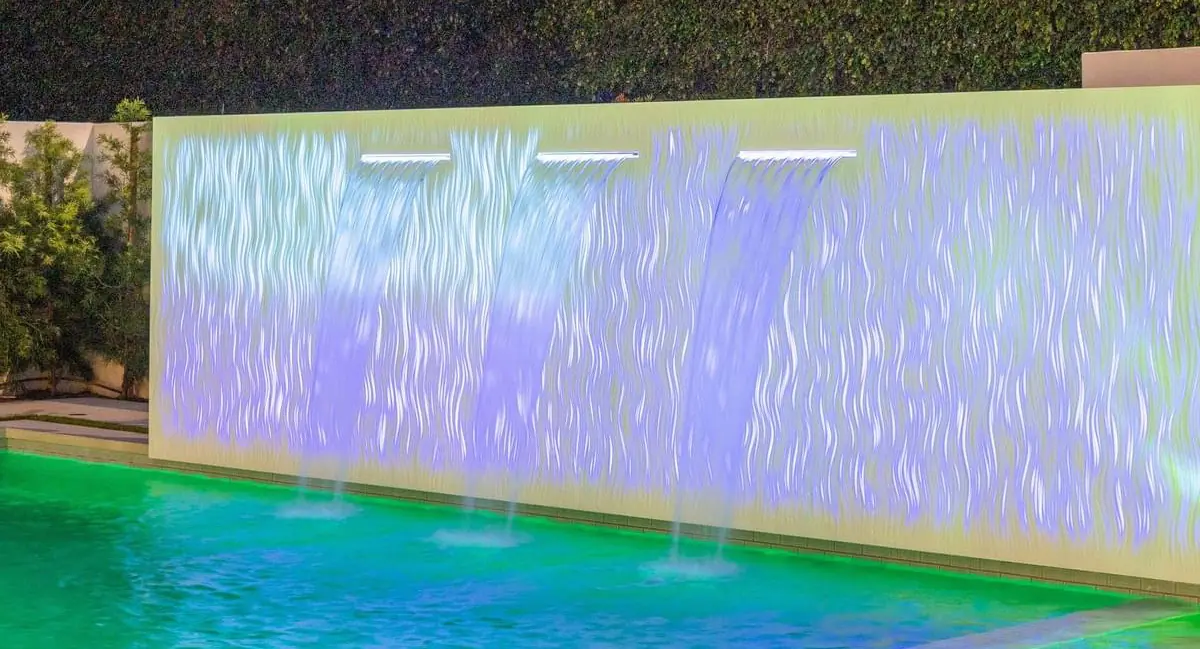

Light it up.


RGB Wiring diagram for a double sided water feature.

TEMP_water-features-over-3d-surfaces_13

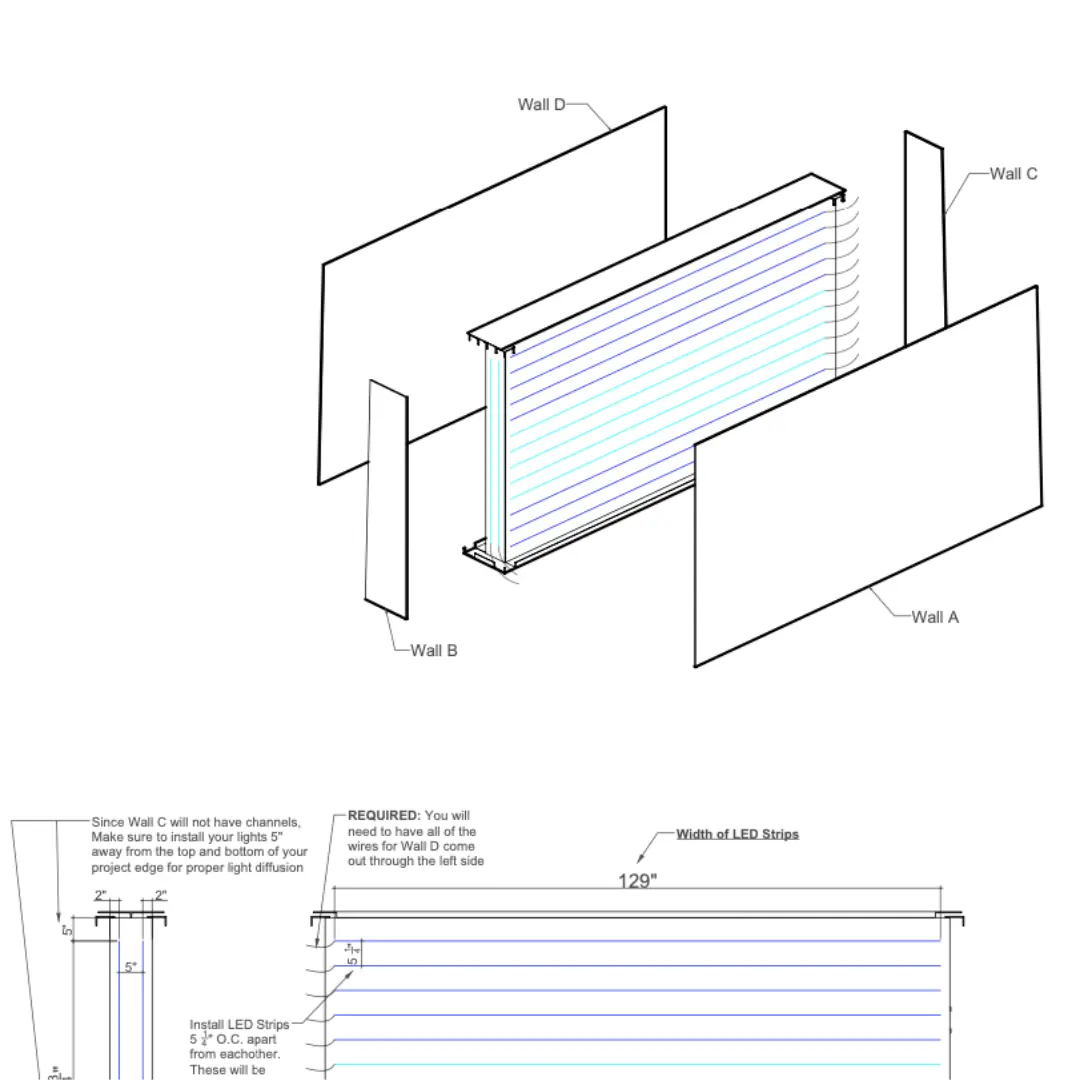

We integrate it with the water feature. Take a look at our shop drawings for this double sided water feature.

TEMP_water-features-over-3d-surfaces_14

From the first drop to the final ripple, witness the journey of our water feature installation—a symphony of precision, passion, and pure craftsmanship.

Crafting Majestic Water Features with Delta Fountains

Crafting Majestic Water Features with Delta Fountains

Our collaboration with Delta Fountains on innovative water feature designs - is a milestone achievement.


Delta Fountains was honored to join the team that created something truly monumental – the largest man-made waterfalls in the world. These stand as a tribute to the lives lost at the World Trade Center in 1993 and 2001, a symbol of resilience, remembrance, and hope.

TEMP_water-features-over-3d-surfaces_15

At MR Walls, we’re passionate about pushing the boundaries of design and harnessing the beauty of water to create unforgettable experiences. Whether you’re looking to add a touch of serenity to a residential garden or create a stunning centerpiece for a public plaza, our water feature designs are crafted with precision, creativity, and an unwavering commitment to excellence. Join us as we continue to explore the endless possibilities of water features and embark on a journey of inspiration and innovation with MR Walls.
